Drive shaft
 |
This is drive shaft, its transfer the power from transmission output shaft driving wheels of a motor vehicle. components of the drive shaft: 1 sleeve with slip spline; 2 front universal joint(yoke); 3 front shaft; 4 centre bearing; 5 constant velocity joint; 6 rear shaft; 7 rear universal joint |
 |
| front |
 |
| centre |
 rear shaft |
universal joint / cross and yoke
 |

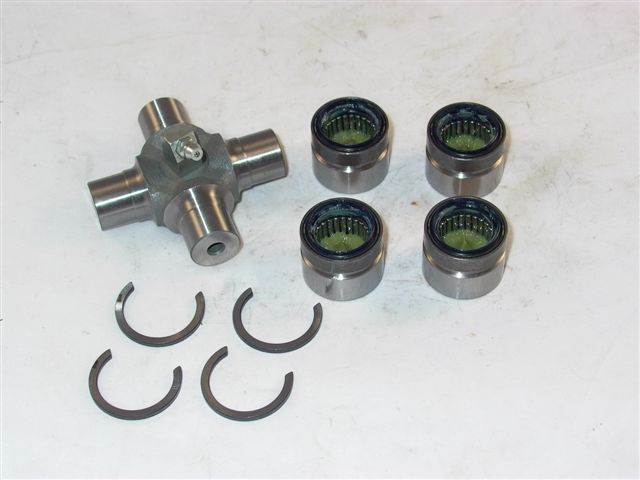

components of the universal joint: the cross\ circlips\ the needle rollers\ cups When we removed it we have to thoroughly clean it and be sure to remove any old grease to allow the joint to be inspected properly, and inspect the universal joint surfaces, needle rollers and the yoke surfaces. |
The driveline phasing
Checking the driveshaft runout
We use the dial test indicator and the two vee blocks. We put the drive shaft on and between the two vee blocks. Than set up the dial test indicator, central between the vee blocks. Make sure that the probe is set up at right angles to drive shaft. Than turn the drive shaft slowly around 360°and note the largest reading on the gauge, and usually we have to get three different place: front central and end.
